Hydraulic CNC Press Brake Manufacturer from India.

Structure

The CSHPB frame is built using only high quality mild steel. The welded construction provides the structural stability to ensure consistent performance with minimal deflection

Standard Features

• Synchronized, YI/Y2 rams control.
• High precision, high speed bending via advance closed-loop hydraulics.
• Purvaj quick release clamp and standard tooling set.
• Front sheets support.
• Stroke depth measurement through high precision linear scales.
• CNC CONTROLLER - cybelec
• Servo CNC back gauge With precision ball Screw , linear guide way ensures unsurpassed rigidity high productivity speed
• Automatic programmable back gauge retract feature.
• Ram speed control.
• Ram stroke control.
• Auto & programmable pressure control.
• Programmable bending speed.

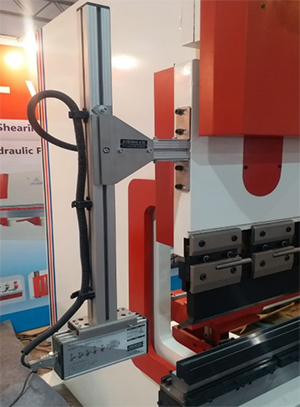

High Resolution Linear Scale
Provide Precision dual ram feedback

Standard Backgauge
CNC servo position control on X axis and Z1 / Z2 are manual move on LM guide.
Servo CNC back gauge with Precision ball screw and linear guide way ensures maximum rigidity for high productivity speed and high accuracy.

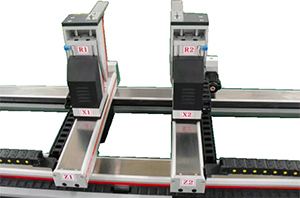

Standard BackgaugeMulti � axis configuration (Optional)
X1, X2, Z1, Z2, R1, and R2

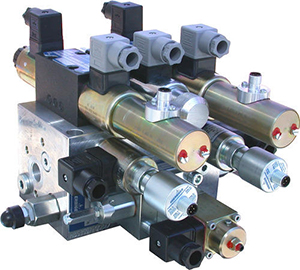

Advance Closed Loop Proportional Hydraulics System
Advance closed loop proportional hydraulic technology For superior, synchronized Y1 &Y2 precision and ultra low maintenance

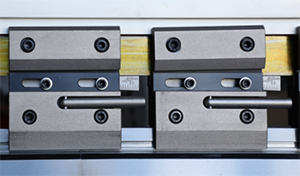

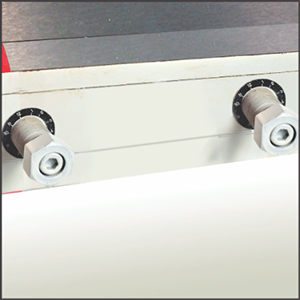

Quick Release Clamp ( Standard )
A cost effective efficient solution for quick tool changes.

Auto Crowning System ( Optional )
Auto Crowning system for precise degree.

Manual Anti Deflection Sytem ( Optional )
A Low Cost Manual anti deflection system for perfect bending

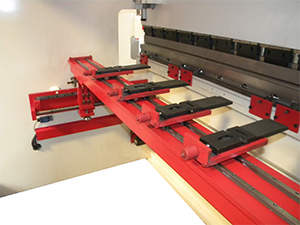

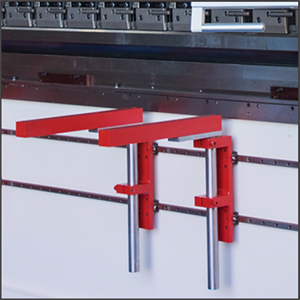

Front Sheet Support
Heavy duty front sheet support mount on L M Guide for gauging and easier part handling

Laser Beam Safety ( Optional )
Protect human body part

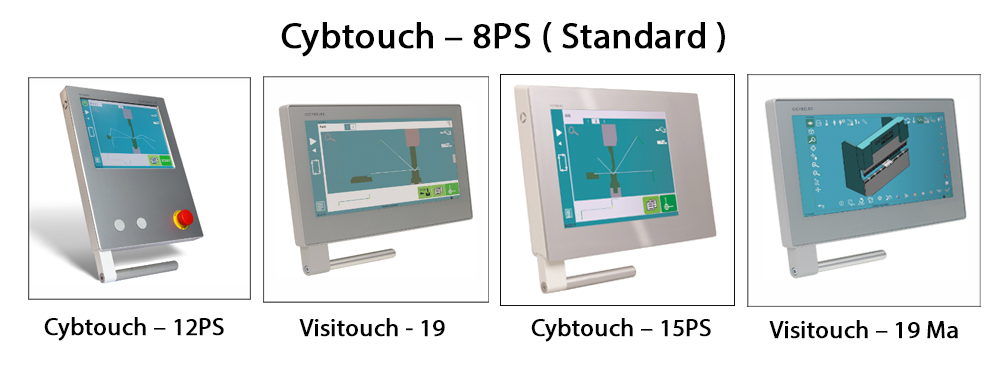

CNC CONTROLLER

Cybelec Controllers (More Powerful)

Some Of The Many Cybelec Features Include

• Easy Operating.
• User Friendly.
• Easy communication
• Rapid data input thank to the ergonomic with large keys, and user oriented 20 graphics display.
• Simple, intuitive and interactive programming.
• Easy programming of punches g dies aided by existing profile a tool mounting.
• Screen page displays front view of the machine and shows tool combinations created stored in the material database.
• Display of optimal bend sequence according to operator defined criteria such as; maximum accuracy between two defined faces, cutting error on a given face, possible collisions detection with tools or machines.
• EC safety cycle managements.
• Program can be linked together to create a very high number of sequences.
• Full 3D simulation.
• Video-like simulation
